TR1-1
	Electrical components can be accessed by one or individual interlocked doors.

TR1-3
	Electrical components can be mounted on seperate mounting plates to enable easy replacement or upgrade.

TR1-5

The frames can either be manufactured from modular panel components or purpose made to customer requirements. The meshed side panels act as a guard against direct contact, and assist the air cooling of the transformers.

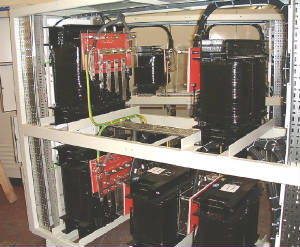

TR1-2

Each Transformer Rack can accommodate up to six transformers which allows room for maintenance.(Here shown with side guards removed).

TR1-4
	Each transformer can either incorporate a Tap Selector Switch or swing link on the connection plate.

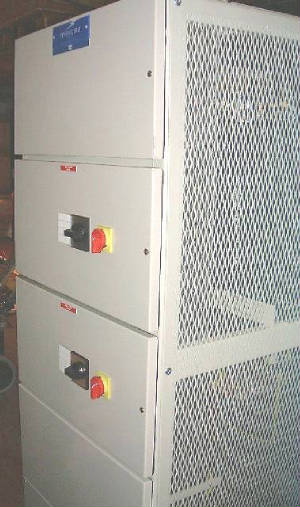

TR1-6
	View showing the front of a finished rack. The Isolators for each zone have door interlocks and are suitable for the use of padlocks, for safe maintenance work to be carried out on external equipment.

TR1-7
	External labelling is usually engraved on traffolite material.Which gives our control panels the finishing quality they deserve.
